Complete loft
Eight finished images, eight direct Blender renders, the full scene, source scripts and project notes.
Download loft models & finished renders22.6 MB ↓Design archive · September 2026
The loft.
White walls, oak parquet and stainless steel.
A rust TEDDY in the south lounge.
12 views2 editable modelsModels & specifications
The full loft
01–08 / Select a view to enlarge

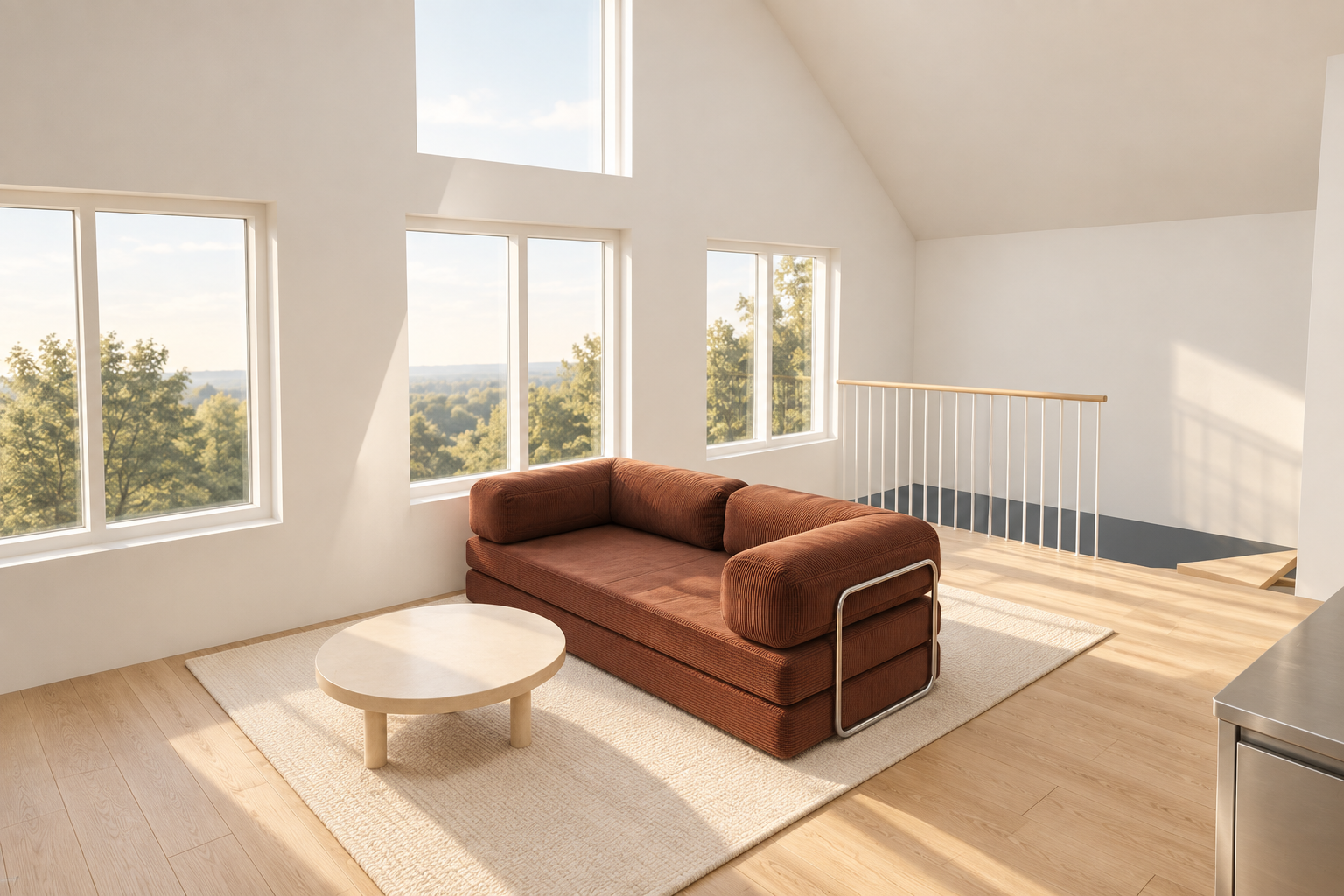

The original TEDDY faces east in the south lounge, rotated 90° clockwise.

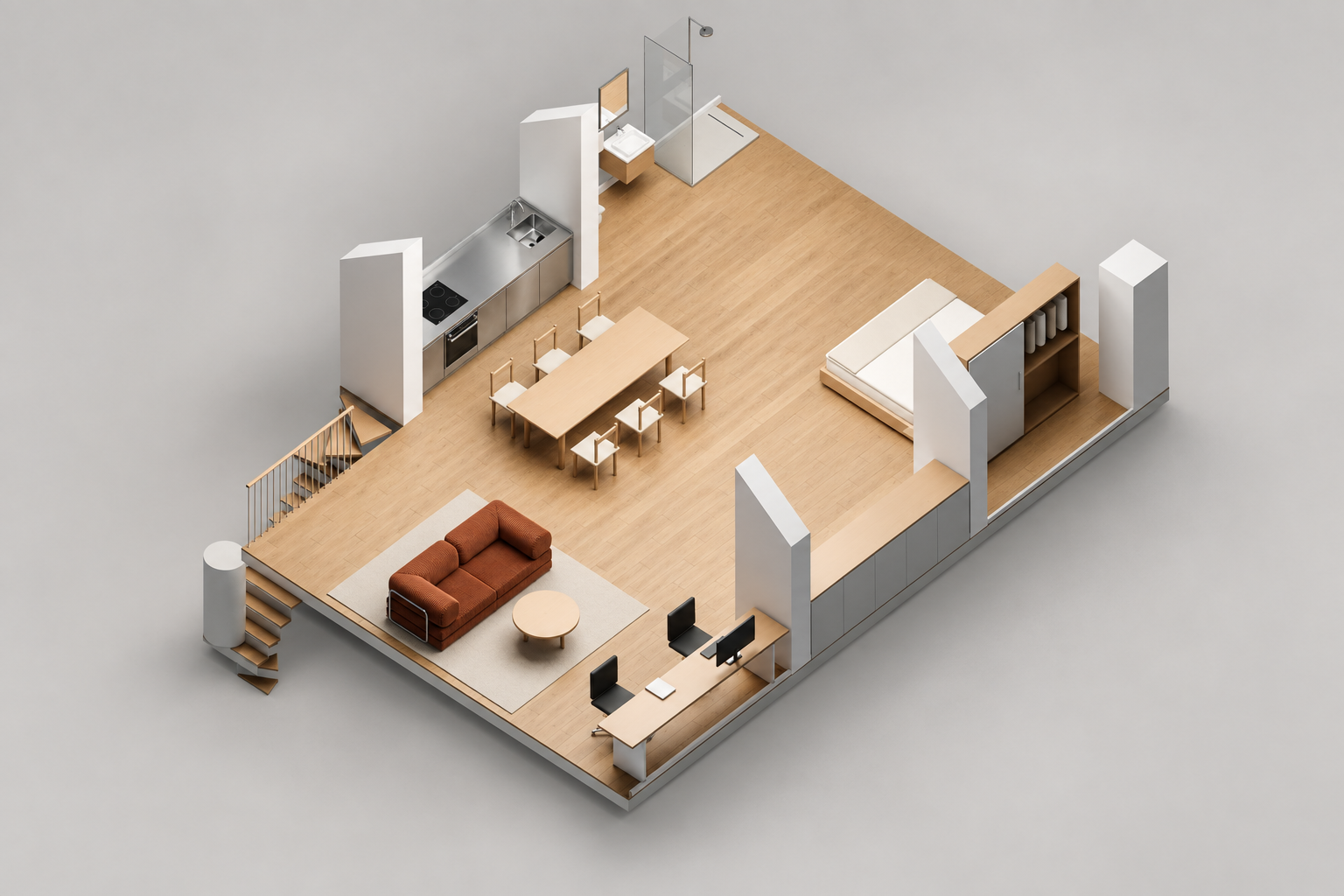

A cutaway of the three bays: lounge and desk to the south, kitchen and dining in the middle, bedroom to the north.

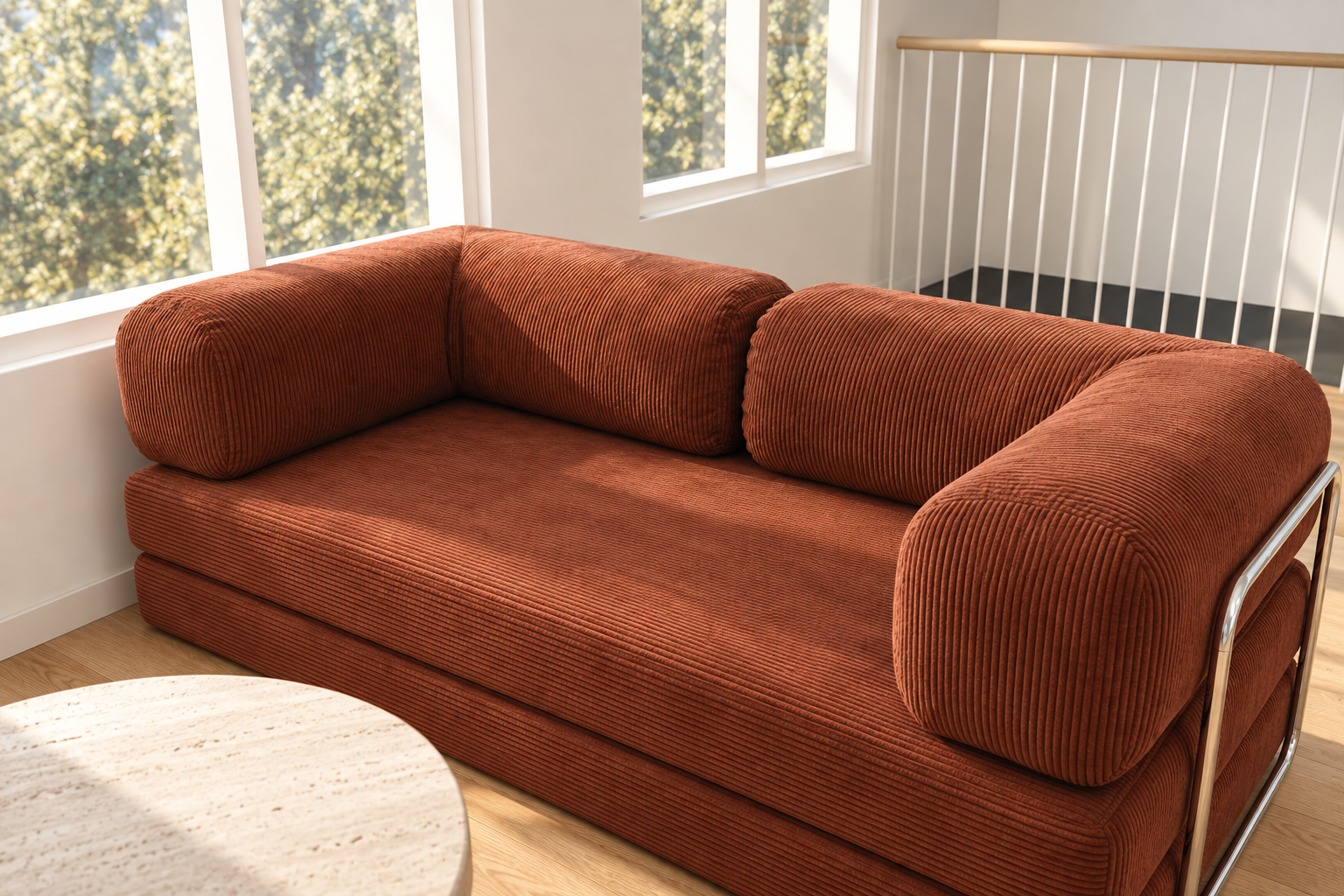

Original 200 × 100 cm sofa, with corduroy upholstery and chrome supports.

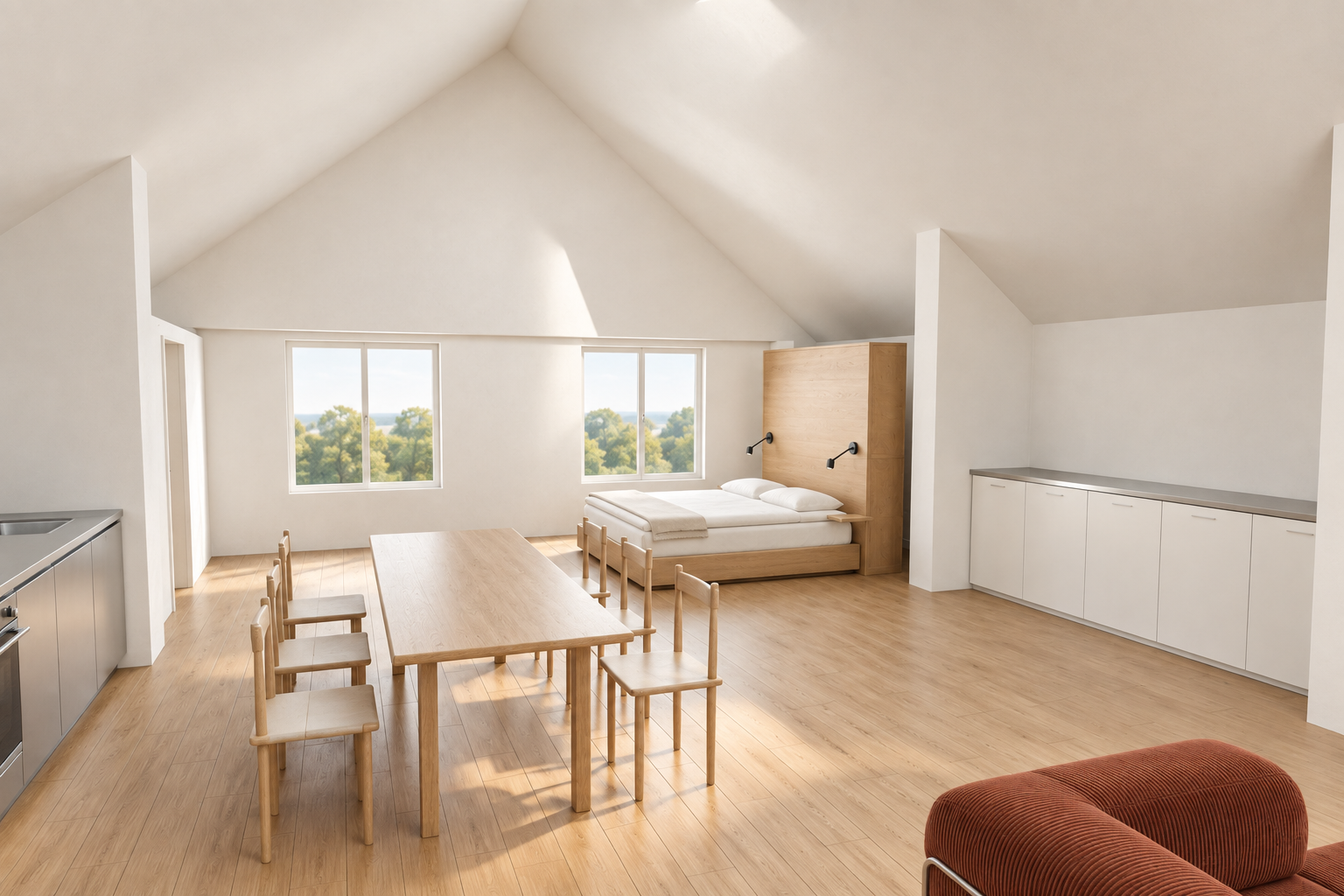

Looking north through the kitchen and dining area toward the bedroom.

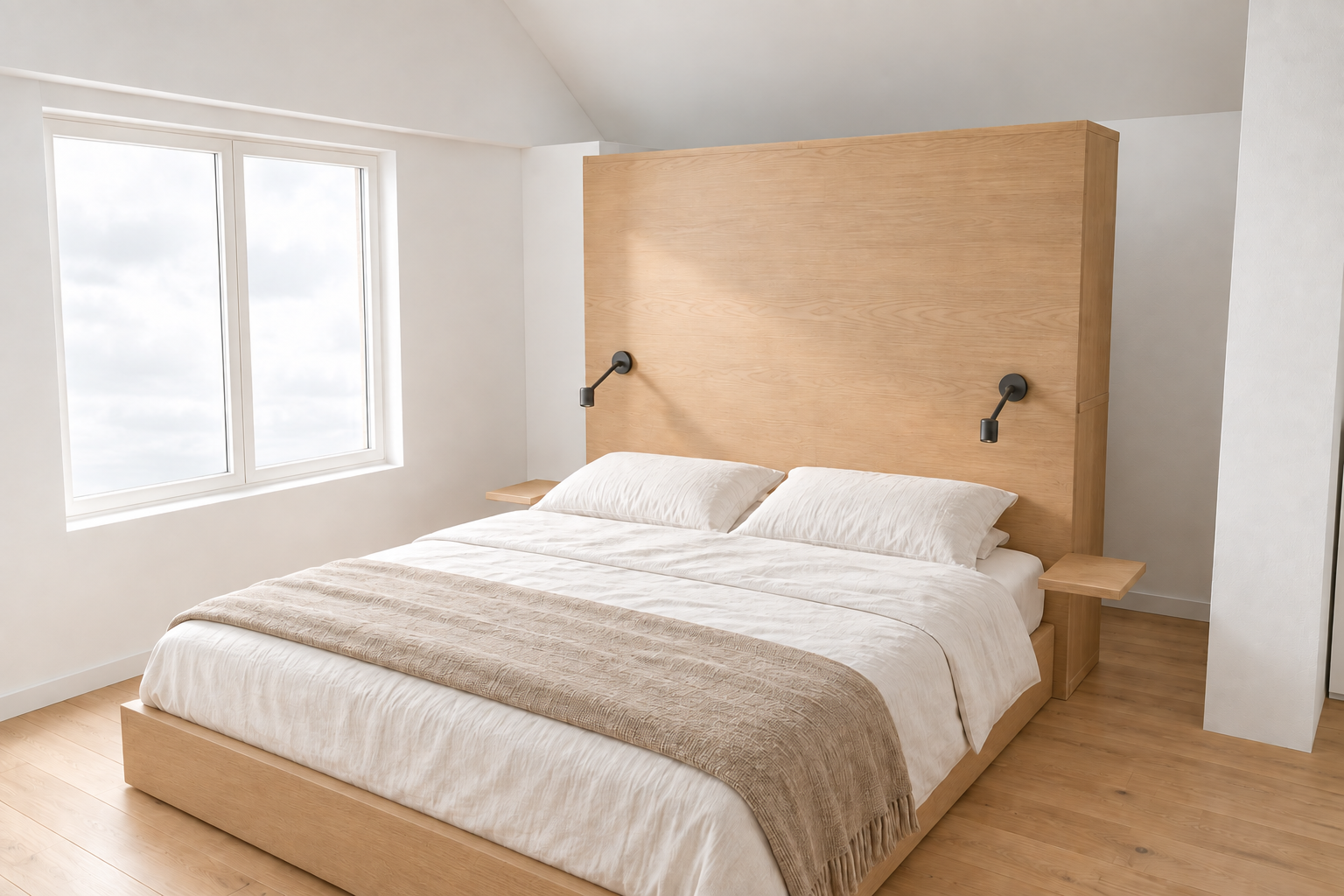

White linen, an oak platform bed and a headboard that forms the dressing partition.

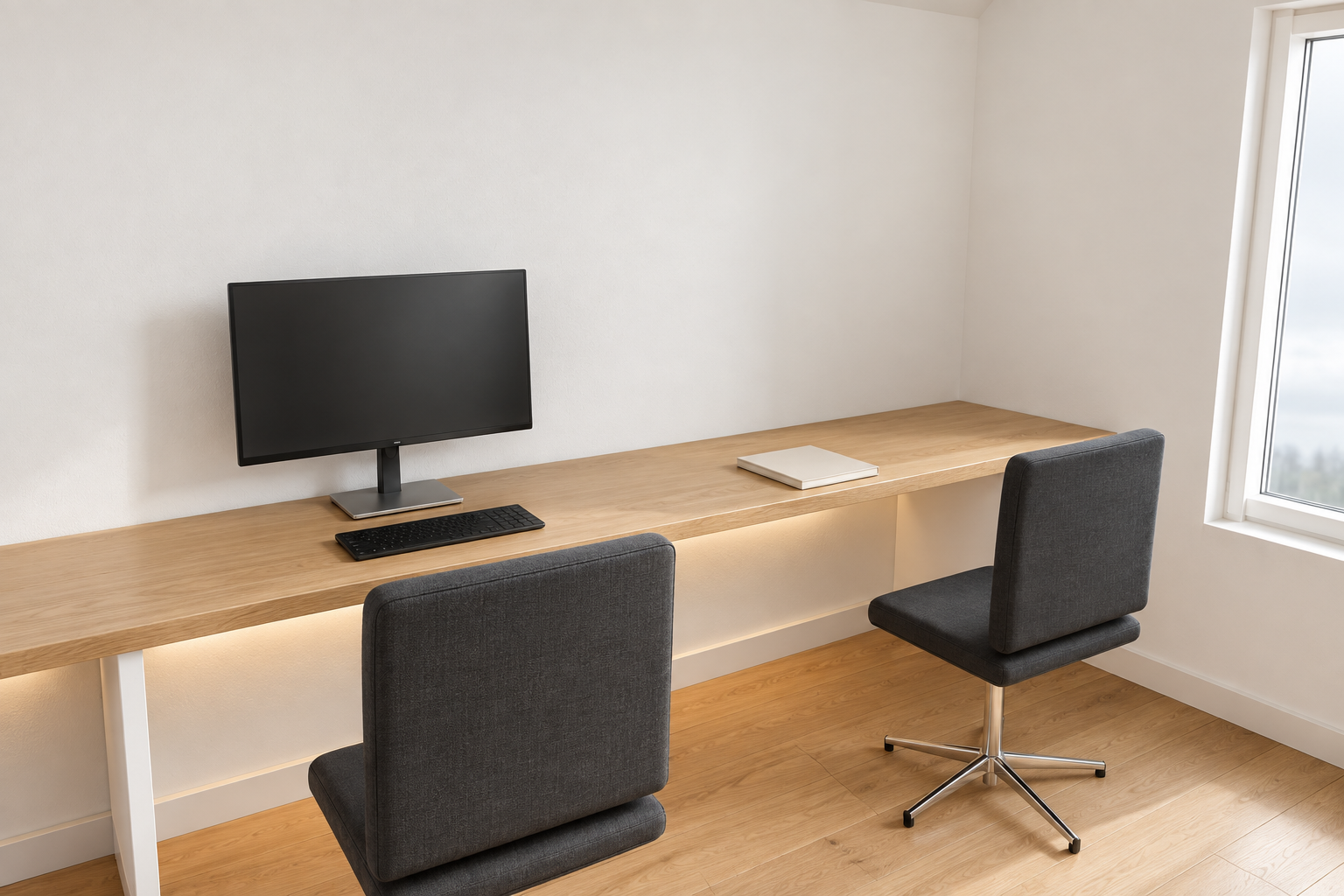

An oak desk with two work positions and discreet lighting beneath.

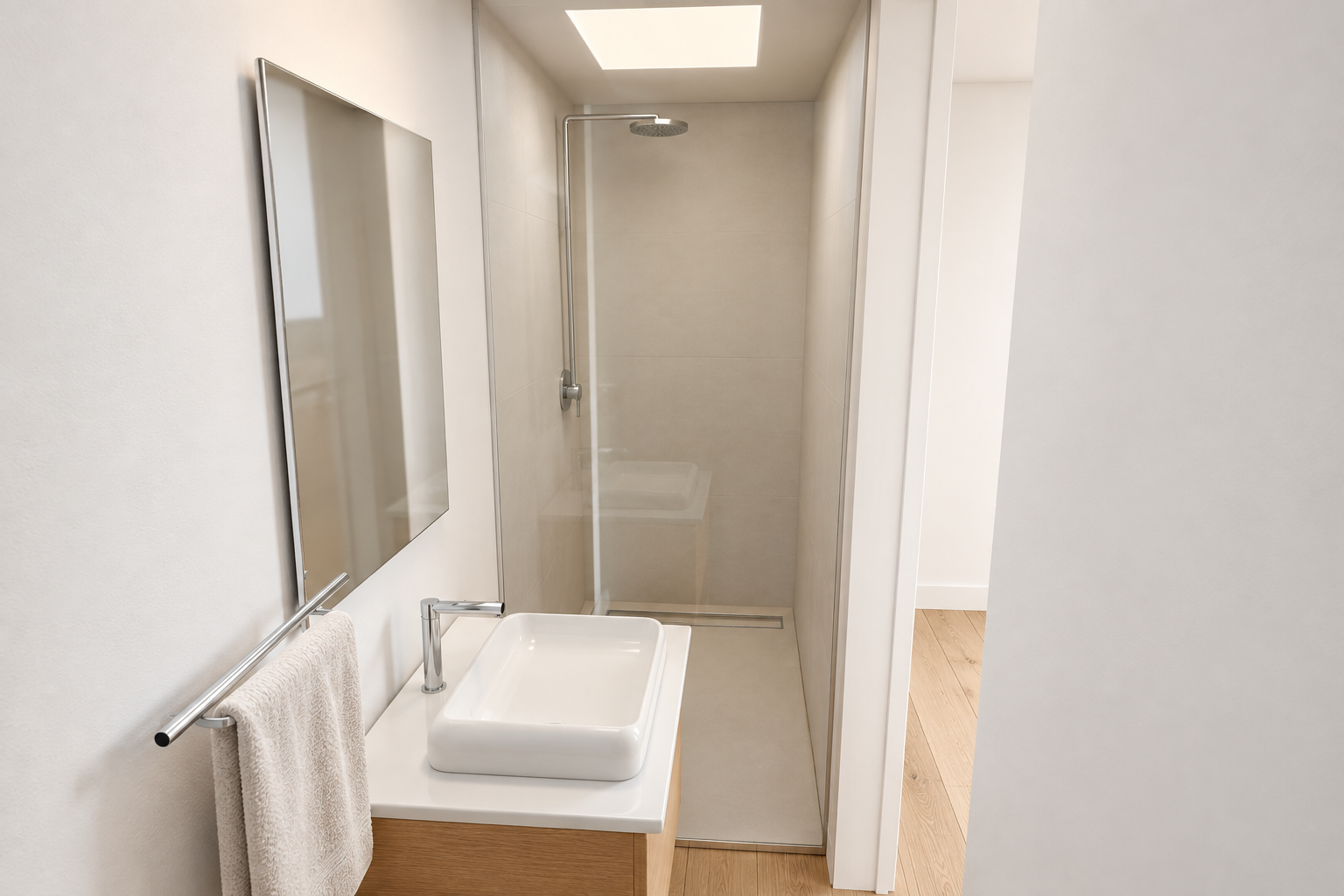

The compact vanity and glass shower at the north end of the narrow bathroom.

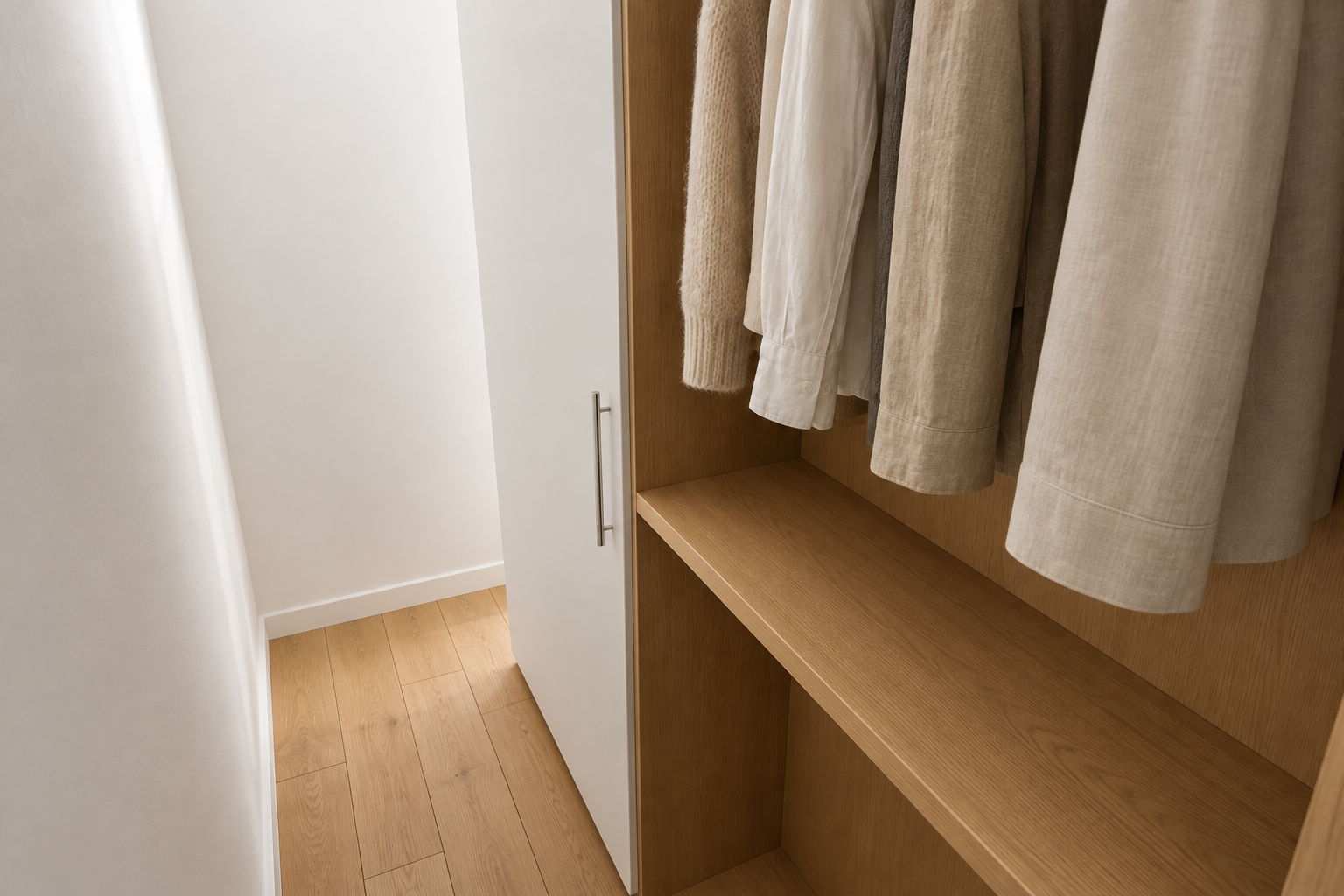

A compact dressing aisle with oak shelving and white joinery.
South section

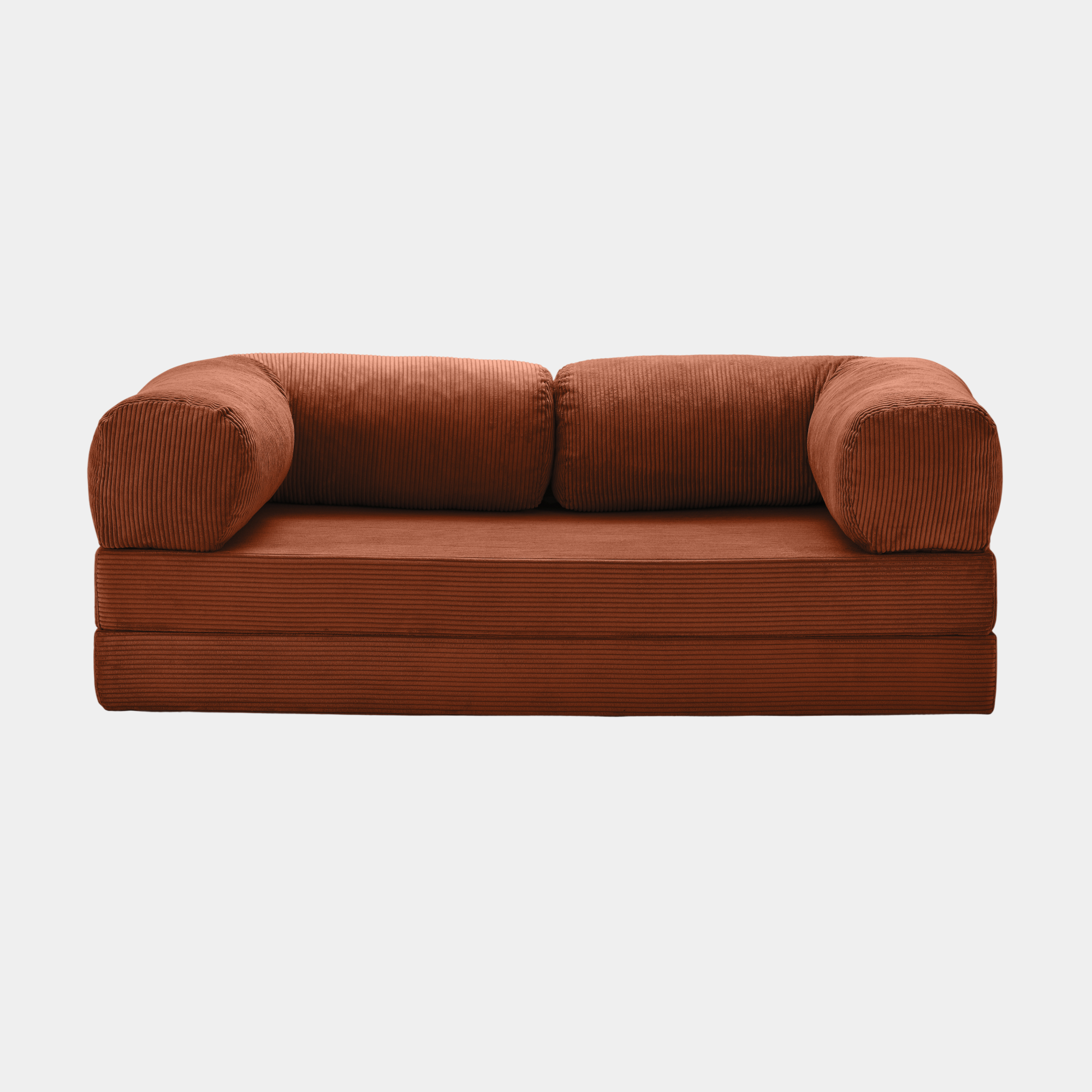

OMHU TEDDY · Rust 5782

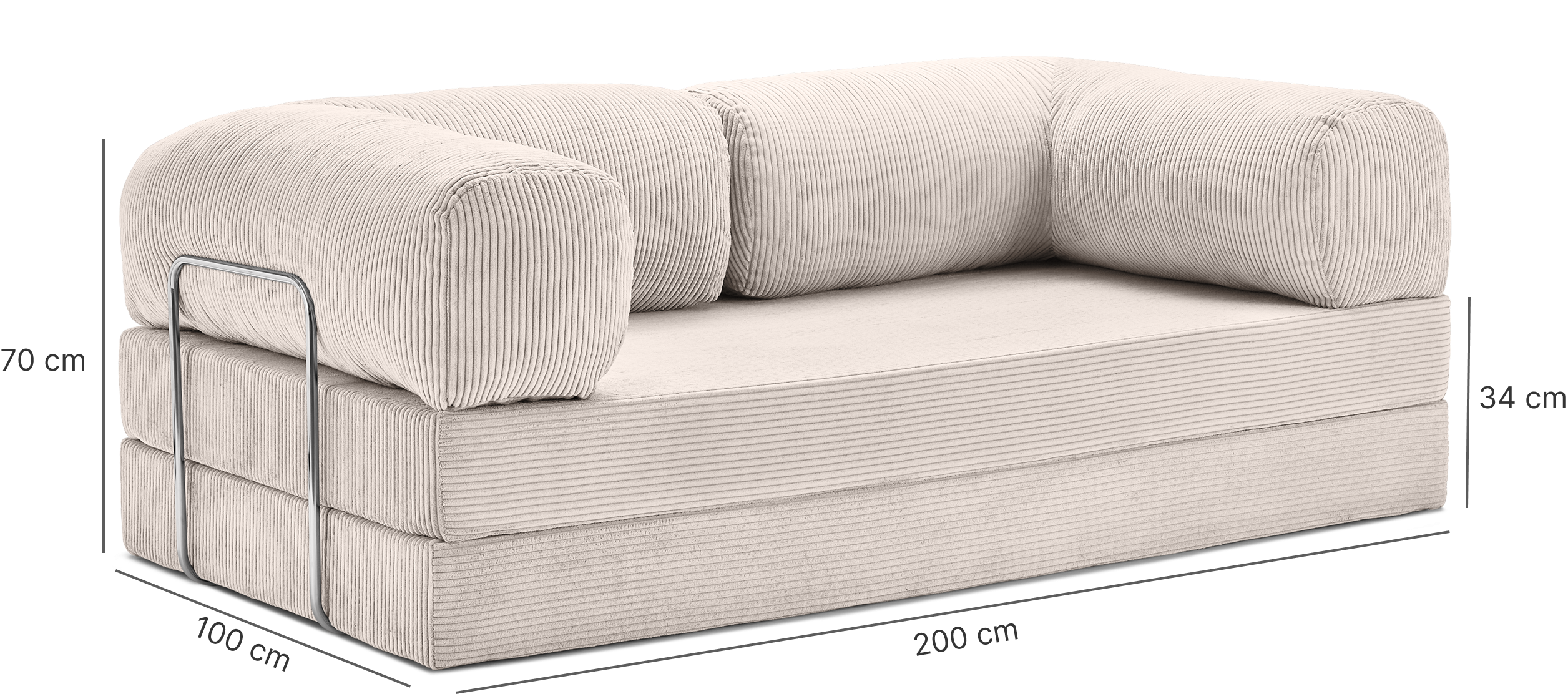

Original version: 200 × 100 × 70 cm, with a 34 cm seat height. Corduroy upholstery and chrome supports. Modeled from the official dimensions and photographs.
The kitchen
09–12 / Original kitchen study

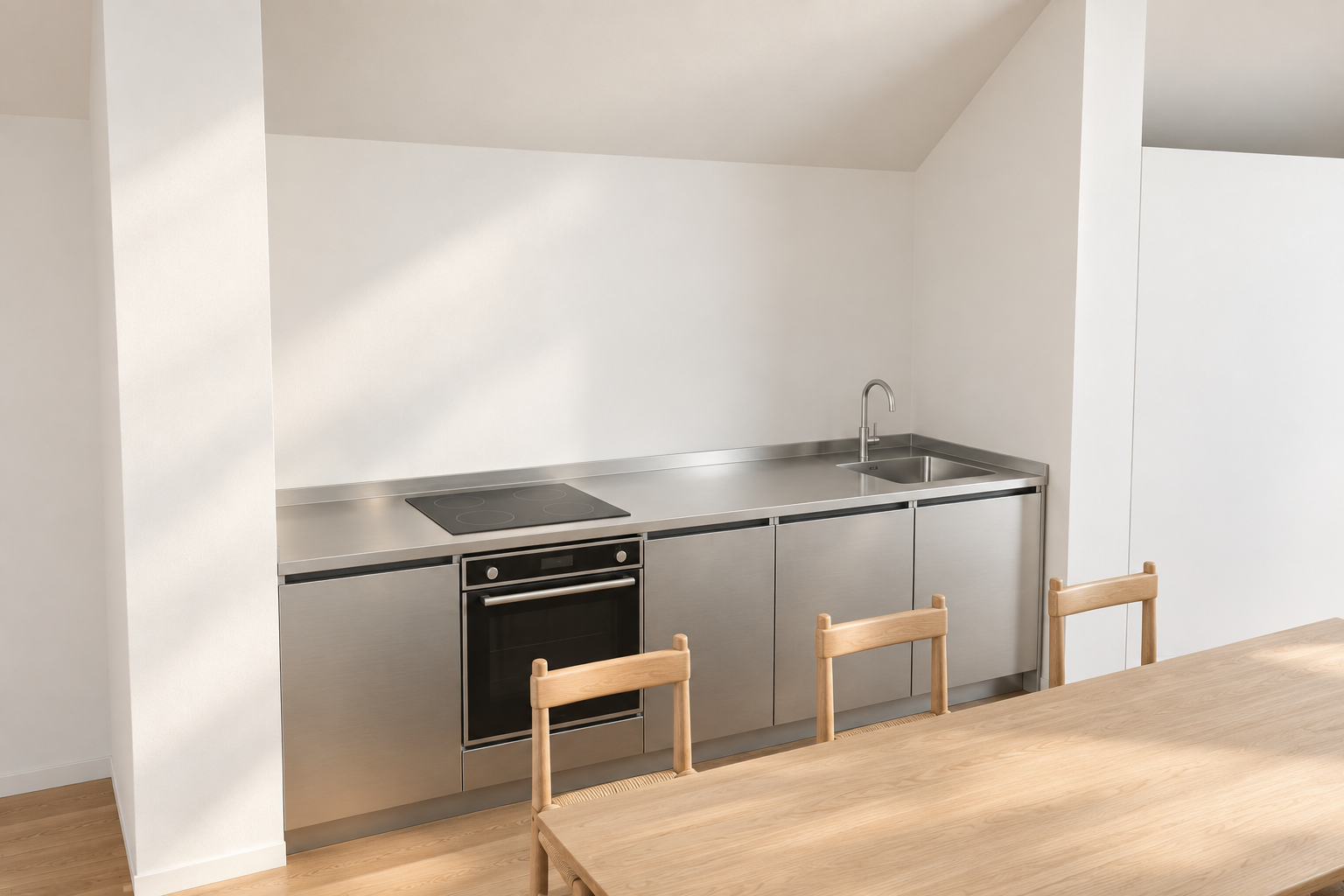

The stainless-steel unit in its original loft context.

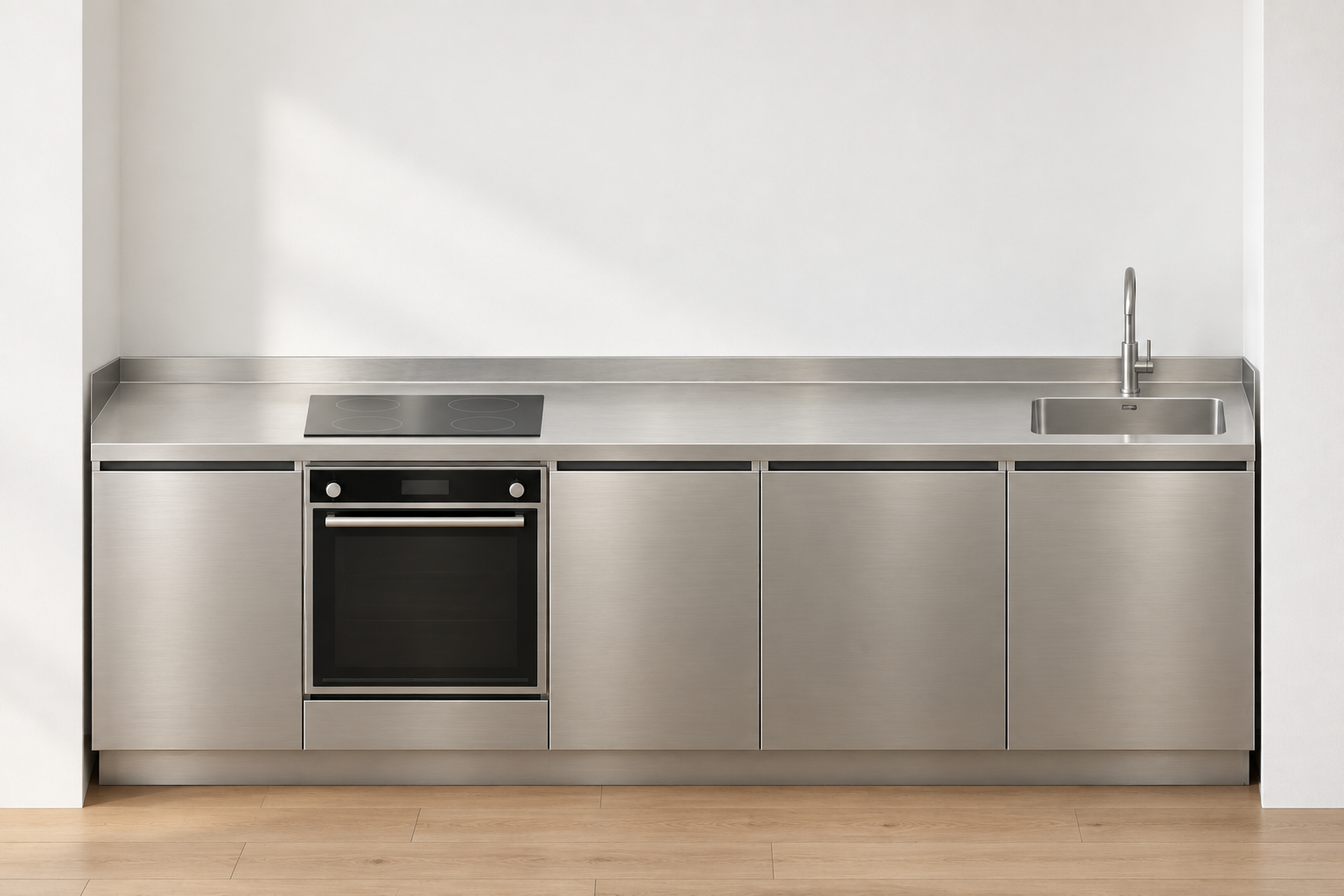

A clear front view of the five cabinet bays, oven, hob and sink.

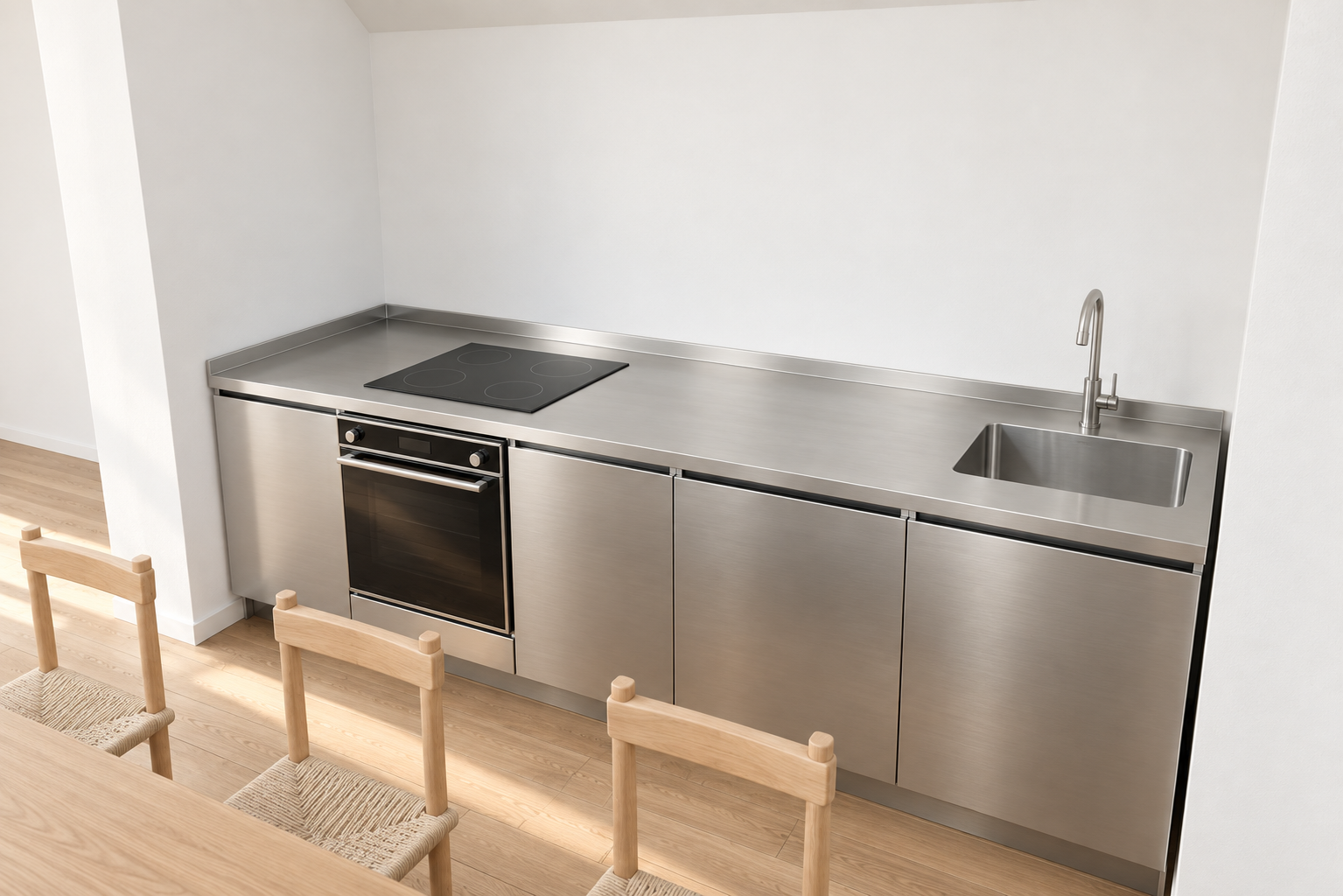

The right-hand sink, satin steel finish and preparation surface.

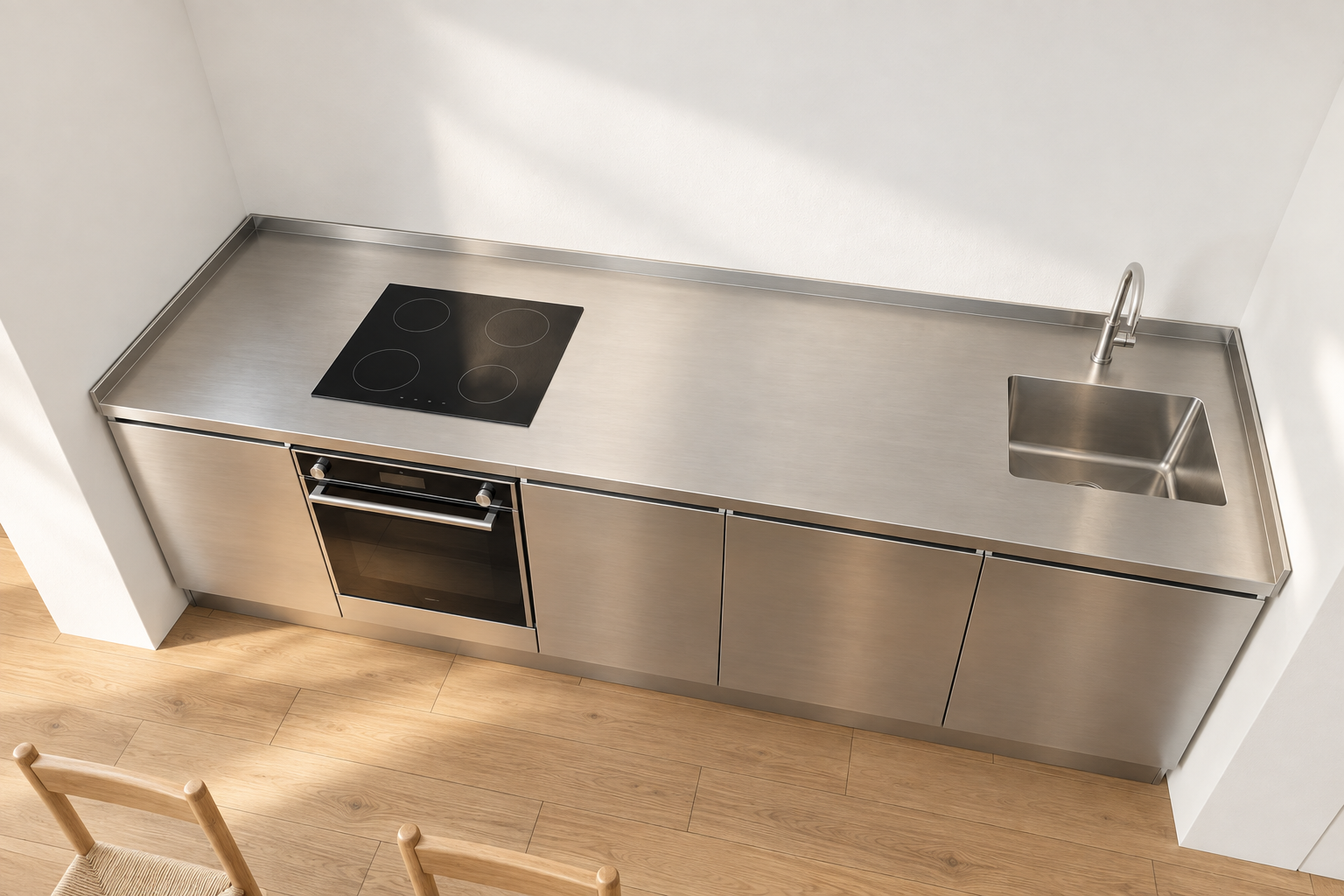

An elevated view of the hob, sink and surrounding work surface.
The kitchen follows the 2,850 × 900 mm stainless-steel worktop in the supplier’s offer. These four earlier views show the kitchen study before the rest of the loft was furnished.
The project files
Renders, models & sourcesOriginal kitchen
Four finished images, four direct Blender renders, the original kitchen scene and its specifications.
Download the kitchen package15 MB ↓A few modeling notes
Renders and the editable model
The finished images use AI finishing over actual Blender camera renders. Open any view and select Blender reference to see its direct render. The native scene is the editable spatial record; small material, lighting and furnishing details can differ in the finished images.
Layout, heights and furniture
The sofa is in the south bay, turned 90° clockwise to face east. It has been shifted 400 mm north for wall clearance, with the coffee table in front. Kitchen and dining occupy the middle, with the bedroom and dressing area to the north. The room envelope is approximately 9.75 × 7.47 m.
The plan leaves finished floor level to be determined. Eaves are interpreted at approximately 2.17 m above the finished floor, with a ridge estimate of 5.10 m. Parquet pattern, window profiles, lights, furniture other than the named sofa, bathroom fittings, joinery and stair details are illustrative. This is a visualization model, not a construction drawing.
Kitchen dimensions and assumptions
- Worktop: 2,850 × 900 × 40 mm, with 40 mm upstands on the left, back and right.
- Cabinets: 700 mm deep and 760 mm high. An assumed 100 mm plinth gives an overall worktop height of 900 mm.
- Welded sink: 500 × 400 × 250 mm, above the rightmost waste drawer.
- The approximate left bay widths in the offer total 1,655 mm, while the assembly is quoted as 1,640 mm. The model uses 517.5 + 605 + 517.5 mm to preserve the overall width.
- The oven, hob, tap and internal hardware are generic choices. Exact appliance cutouts and fitting positions remain to be specified.
